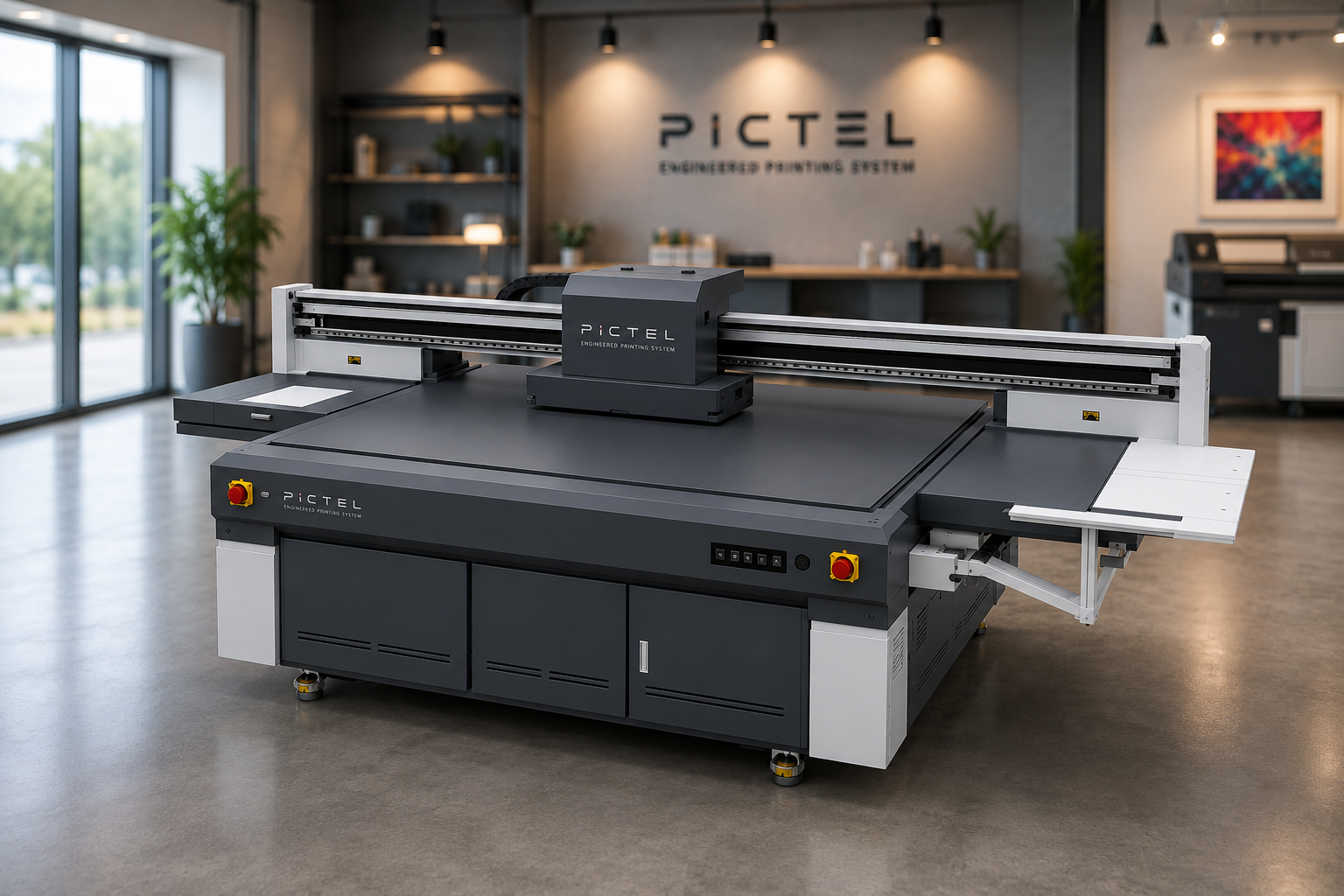

PI-2513 Large Format UV Flatbed Printer For Rigid Substrate
2.5m large printing format, speed and quality coexist, custom height up to 40cm, excellent performance, easy to cope with the diverse and high-end printing needs of craft gifts, home building materials, electronic appliances, commercial advertising, etc., bringing new printing solutions to various industries.
Main Features:
- 2.5 × 1.3m printing width
- 2–8 × Ricoh G5 / G6 printheads optional
- 5 Colors + Varnish
- The ultimate balance of speed and precision.
- Large size, ultra-high-speed mass production.
- Ideal for mass production in large enterprises.
Technical Specifications:
- Printhead: Ricoh GEN5/GEN6 available (multischeme options)
- Printing Speed: 6~15sqm/hr (according to nozzle configuration)
- Print Size: 2.5*1.3m
- Color: C, M, Y, K, W, V
- RIP Software: RIPrint, onyx (optional)

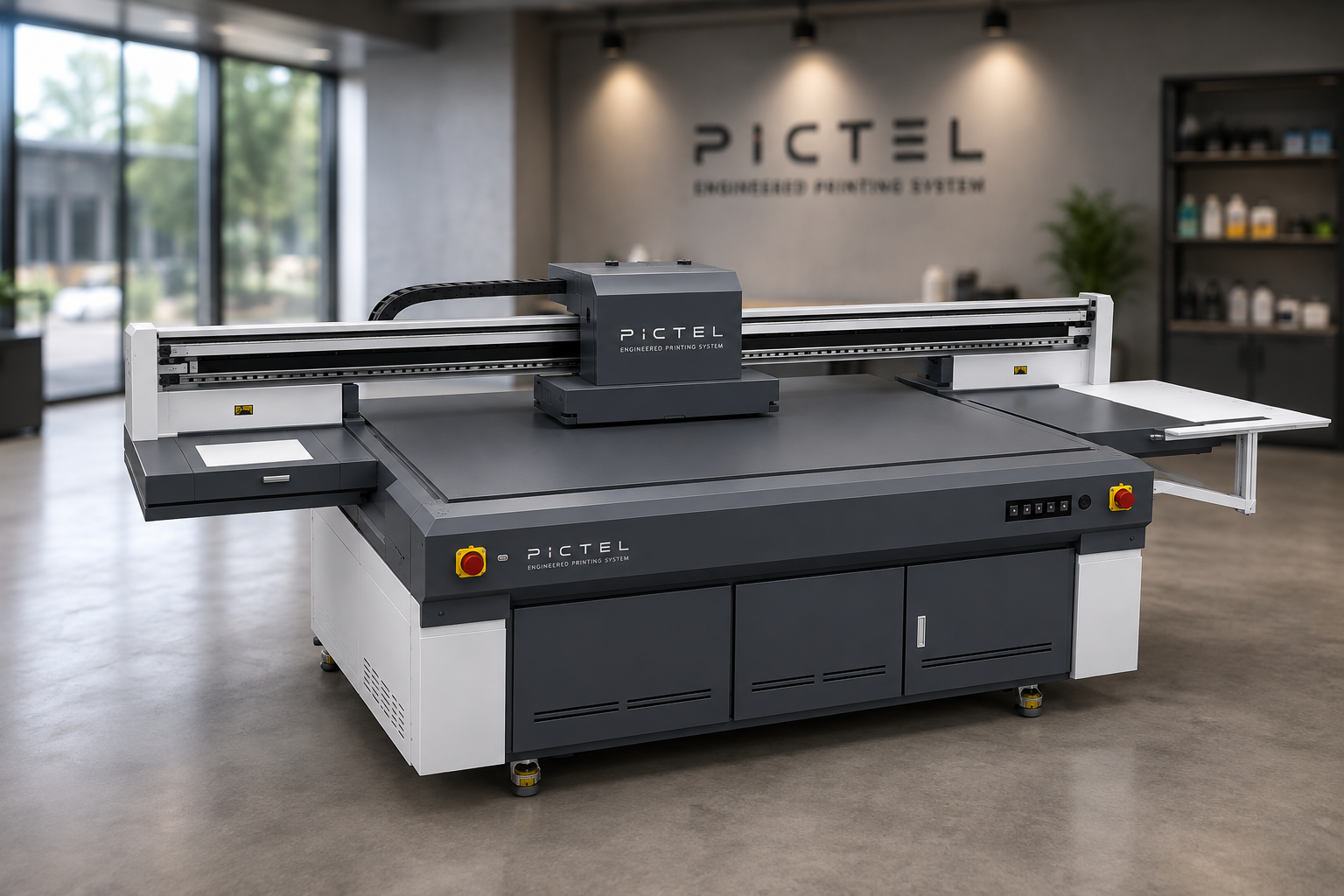

PI-2513 Large Format UV Flatbed Printer. Large Format. Industrial Speed. Exceptional Precision.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
KJ-2513 Large Format UV flatbed printer Advantages
Optional visual positioning
Supports 360° disordered placement, the machine automatically identifies and locates objects, saving effort.

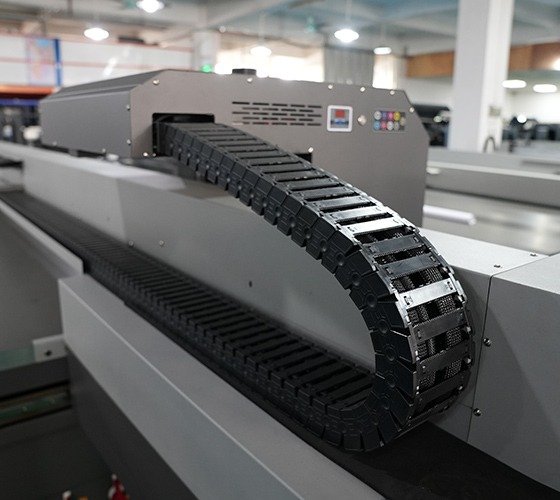

import Igus drag chain
Imported guide rails and chains, more wear-resistant, low noise, smoother printing, higher quality.

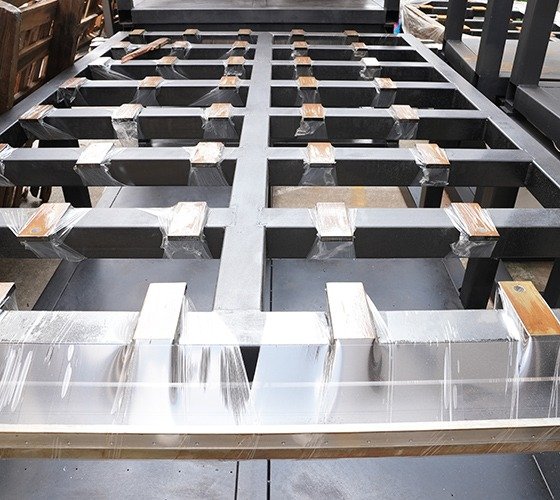

High stability
Hard oxidation adsorption platform, high hardness, corrosion resistance, uniform adsorption, and more stable printing.
High performance printhead
Ricoh Gen5/Gen6 greyscale printhead provide higher precision and more uniform inkjet.

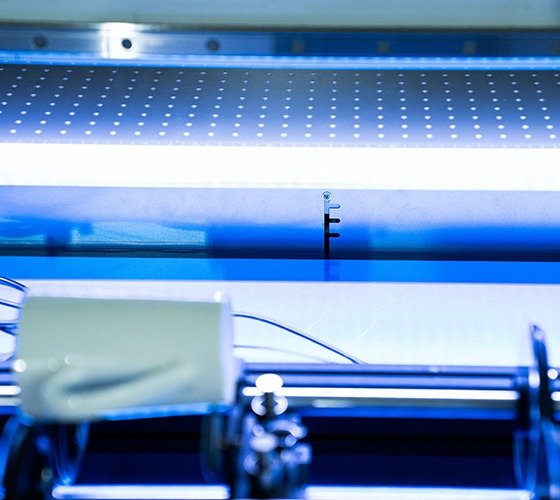

Curing system
Using UV LED lamp for curing, it can be used immediately without preheating time, achieving high-speed curing and strong durability.

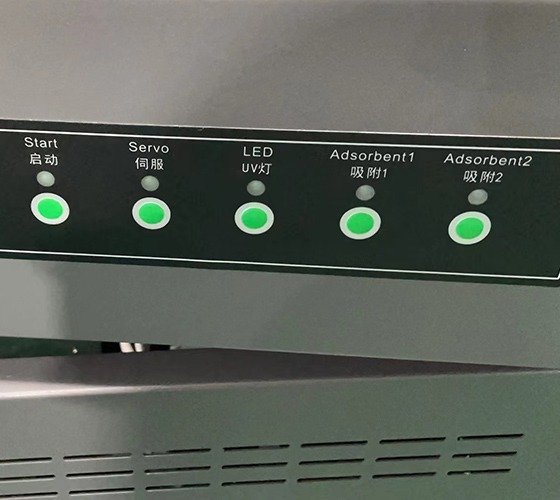

Intelligent Operation panel
The clear operation page and buttons enable one-click operation of each printing process, making printing efficient and convenient.
Automatic cleaning system
The nozzle is automatically cleaned to prevent residue from clogging the nozzle channels and improve printing quality and accuracy.
Ink supply system
Intelligent ink detection system and white ink circulation function monitor ink usage to keep printing smooth and no nozzles blocked.

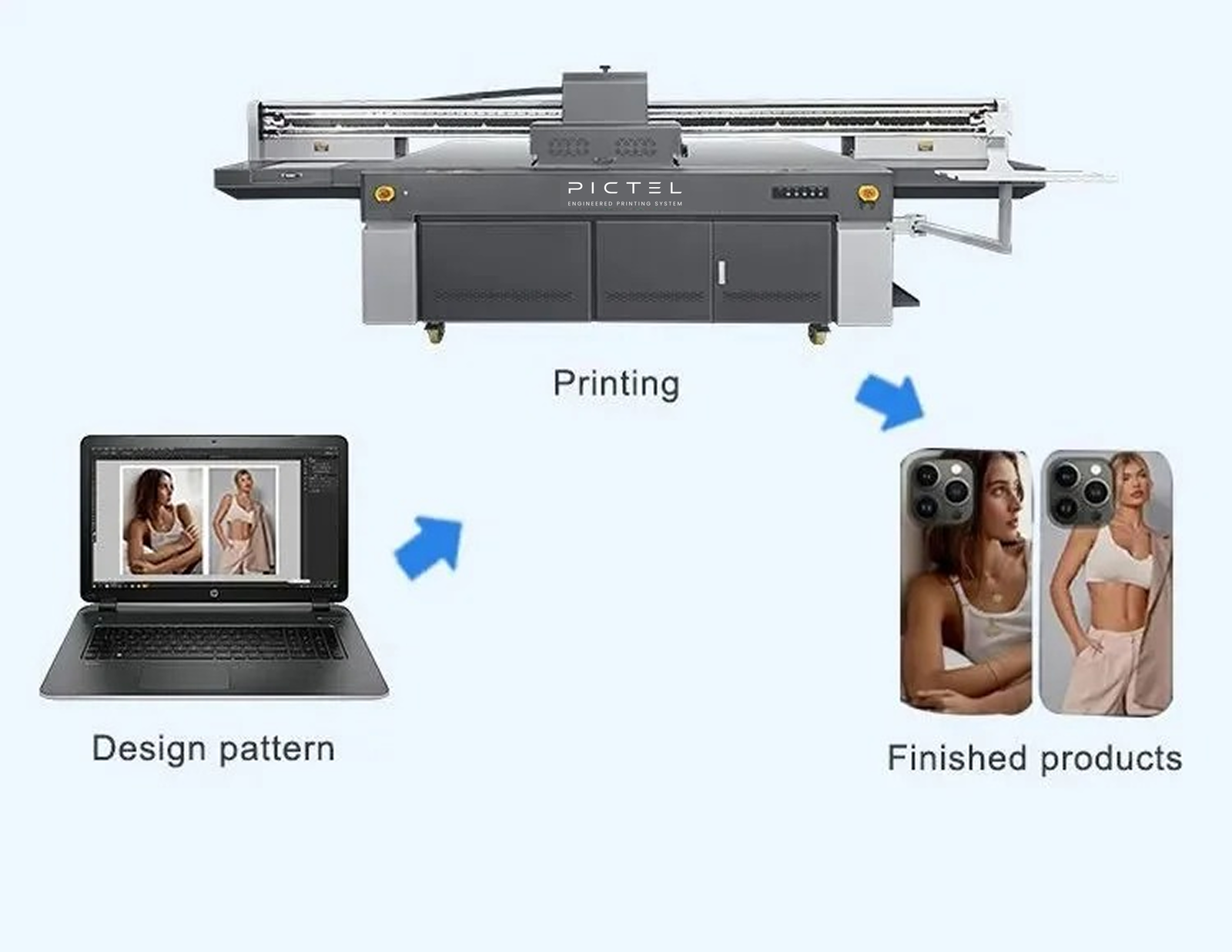

KJ-2513 uV printing Process
Product Specification
| Product | PI-2513 UV flatbed printer | |
| Model | PI-2513 | |
| Printhead | Ricoh GEN5/GEN6 available multischeme options | |
| Printhead Number | 2~8pcs optional | |
| Printing Speed | 6~15sqm/hr (according to nozzle configuration) | |
| Print Size | 2500*1300mm | |
| Print Height | 1-100mm (can be customized to 400mm) | |
| Print Color | C, M, Y, K, W, V | |
| Ink Type | UV LED ink | |
| Media Type | Ceramic, acrylic, wood, glass, metal, crystal, leather, PVC, abs, etc | |
| Cleaning System | Automatically cleaning system | |
| Ink Cartridge | Intelligent cycle connection system for sub-cartridge | |
| Printhead Control | The software adjusts the nozzle temperature and voltage | |
| Curing System | UV LED lamp | |
| Image Format | TIFF, JPEG, postscript 3, EPS, PDF | |
| Power | 50HZ/60HZ, 110V/220V | |
| RIP Software | RIPrint, onyx (optional) | |
| Machine Dimension | 4350*2200*1500mm, 800kg | |
| Packing Dimension | 4880*2280*1650mm, 900kg, 18CBM | |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Large Format UV flatbed printer Applications
KJ-2513 flatbed UV printer uses industrial ricoh print heads with stable performance, which is very suitable for personalized customized printing, meeting the fine and high-yield printing needs of gift customization, promotional items, logos, 3C digital, nail art, badges, key chains, commemorative coins, electronic panels, crafts, home decoration (glass, tiles, wood, metal plates, crystal) and other industries.
Ceramic Tiles
UV printer for Glass
UV printer for Wood
Phone Cases
UV printer for Pens
UV printer Acrylic
FAQ
Ricoh GEN5/GEN6 multischeme options, all our printheads are original and brand new.
Acrylic, glass, ceramics, mobile phone cases, wood, handicrafts, leather, PVC, etc.
No, it does not harmful to human. It uses uv ink, which is friendly to the environment.
1 Year
The UV flatbed printers print directly on hard items without lamination, its directly printing patterns are more durable. UV dtf printer is an all-in-one printer with integrated printing and lamination, and its printed uv dtf can be transferred to any hard flatbed items.
The printing size is 2500*1300mm
Yes, our technicians provide professionally and patiently online or on-site technical training, and one-on-one technical guidance.
Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
