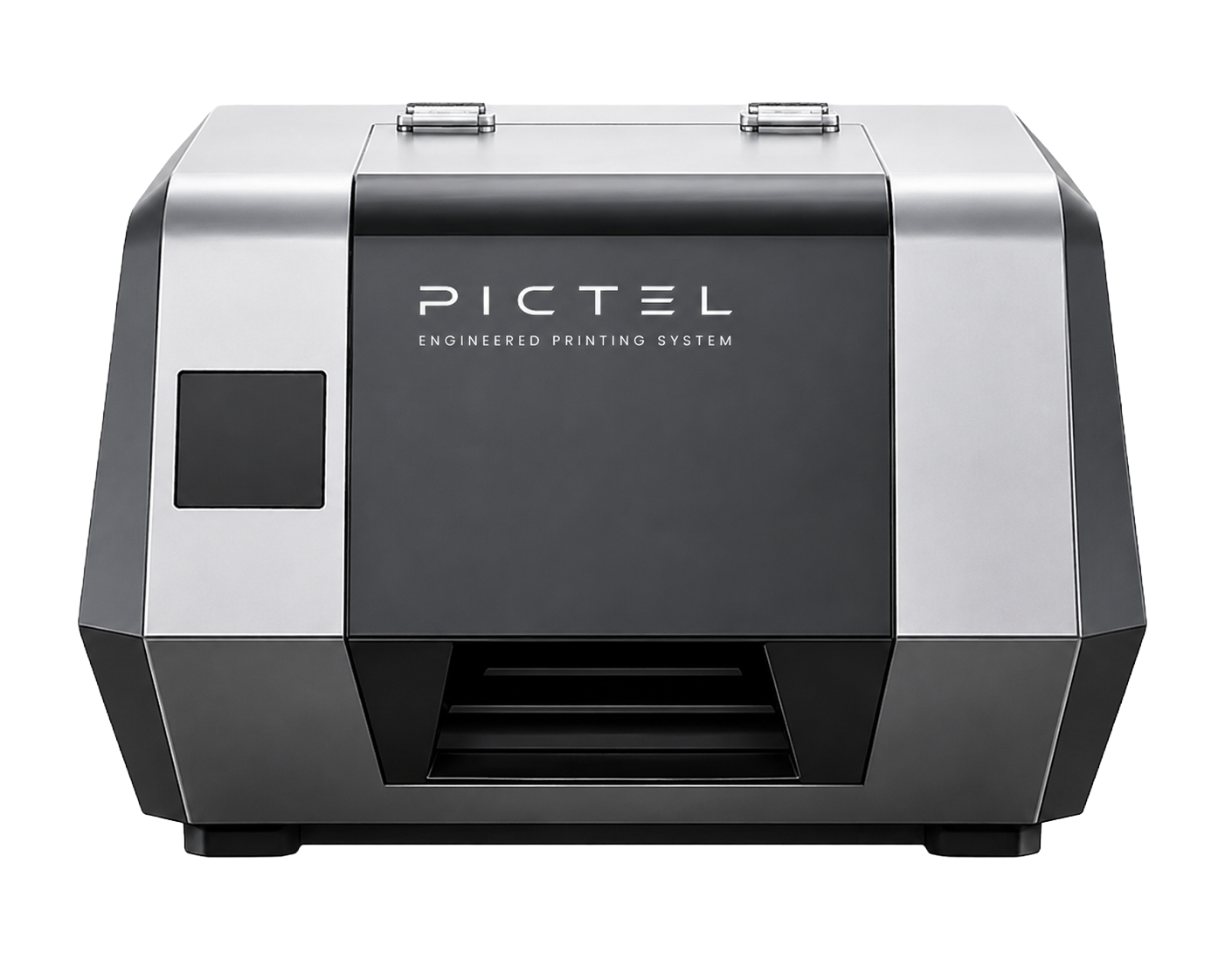

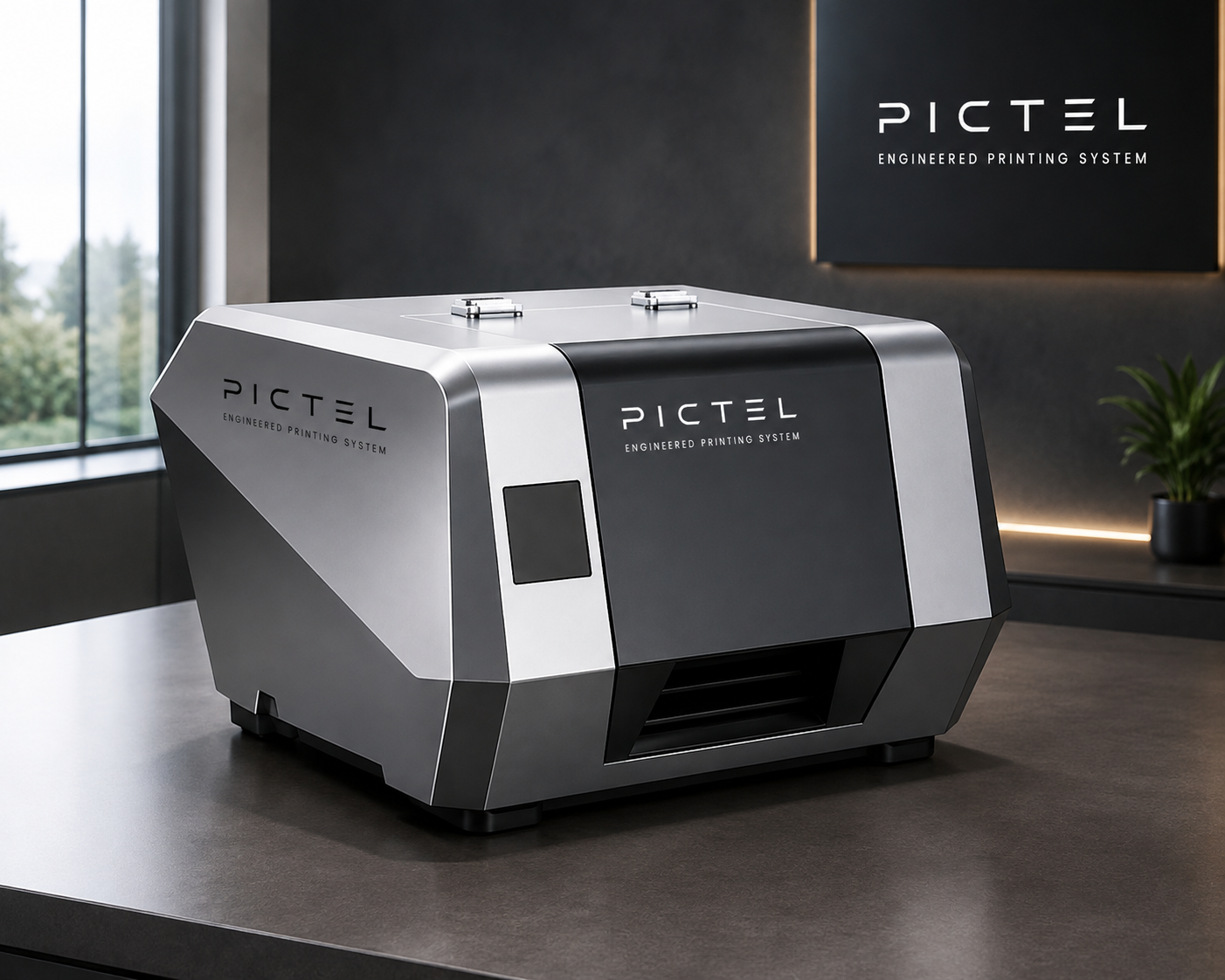

AI SELF-SERVICE CLOUD PRINTER

New choice for intelligent small-scale printing
Say goodbye to tedious operations and easily achieve efficient customization; no professional skills required, even beginners can quickly get started.

Main Features:

AI Intelligent 3D Curved Surface Recognition
Automatic Cylinder & Cone Detection
Supports Cylindrical Diameter: 5mm – 300mm
Supports Conical Angle: 0° – 30°
Printing Accuracy up to 0.01mm
Industrial UV LED Instant Curing

Technical Specifications:

Print Area: 200 × 140 mm
Maximum Print Height: Up to 50 mm (Customizable)
Print Resolution: Up to 1440 DPI
Print Head: Epson F1080 Industrial Print Head
Printing Modes: Unidirectional & Bi-Directional
Curing System: LED UV Instant Curing
Ink Supply: Fully Automatic Ink Supply System
Machine Size: 530 × 390 × 355 mm

AI Self-Service Cloud Printing machine Breaking Through the limitation of flatness/material

Reliable Quality

Professional R&D team control, strict factory testing and excellent machine quality.

Source Factory

Factory direct sales, competitive pricing and flexible customization.

Fast Shipping

Multiple overseas warehouses and fast worldwide delivery support.

Complete Service System

Professional pre-sales, installation, training and after-sales support.

Key Features of All in One Roll Printing Solutions

Multi-Material Printing

Print seamlessly on glass, acrylic, metal, wood, leather, plastic, ceramic, and more. One versatile machine handles both rigid and specialty materials with exceptional precision.

AI-Powered Smart Printing

Create, edit, and print in just a few clicks using intelligent AI features. Simplified workflows help beginners and professionals achieve outstanding results.

Intelligent Height Detection

Automatic media height sensing enables accurate printing on objects of varying thicknesses. It helps reduce setup time while improving print quality and consistency.

Self-Cleaning Print Head

The automatic nozzle maintenance system keeps the print head clean for stable performance. It reduces clogging, extends print head life, and minimizes maintenance downtime.

Product Specification

Product Name	AI Self Service Cloud Printer
Model	A5
Control Board	Embedded Board
Print Nozzle	F1080
Printing Height	5 cm (Customizable)
Printing Size	20 × 14 cm
Print Quality	1440 DPI
Output Color	White / Single Color
Power System	Stepper Motor
Printing Mode	Unidirectional / Bidirectional
Number of Nozzles	1
Nozzle Maintenance	Automatic / Manual Cleaning
Spray Nozzle Anti-Blocking	Flash Spray Anti-Blocking
Operation Method	Scan Smart Connection with Mobile Phone
Transmission System	High-Precision Motor
Output Software	AI Mini Program
Curing System	LED UV Lamp
AI Extension	Supports AI Generation and Transformation Software
Ink Supply System	Fully Automatic Ink Supply System
Language System	Bilingual (Chinese & English) (Voice package required for customization)
Working Environment	Temperature: 15–35°C, Humidity: 20%–30%
Packaging Weight	Approximately 51 kg
Power Requirements	AC 220V / 110V, 50–60 Hz
Bare Weight	Approximately 23.5 kg
Interface Method	Gigabit Fiber Optic
Machine Size	53 × 39 × 35.5 cm
Packaging Size	63 × 48 × 74 cm

Partner with PICTEL. Grow Faster. Earn More.

Your Success is Our Business.

We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.

Higher Profit Potential
Fast Service & Spare Parts
Complete Business Support
Long-Term Growth Partnership
Trusted Engineering Expertise

Start Growing with PICTEL →

UV DTF Printer Application

The PI 4060 All-in-One Roll-Flat Machine supports direct printing on both roll and flat materials, including coil crystal labels, PET film, tin foil paper, wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, fabric, and many other substrates. Its versatile compatibility makes it suitable for a wide range of commercial and industrial printing applications.

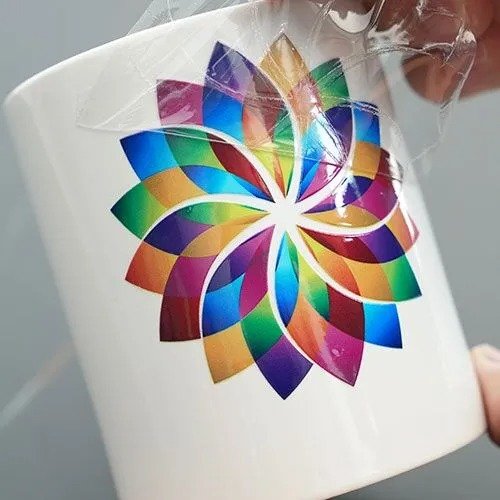

Ceramic

Metal

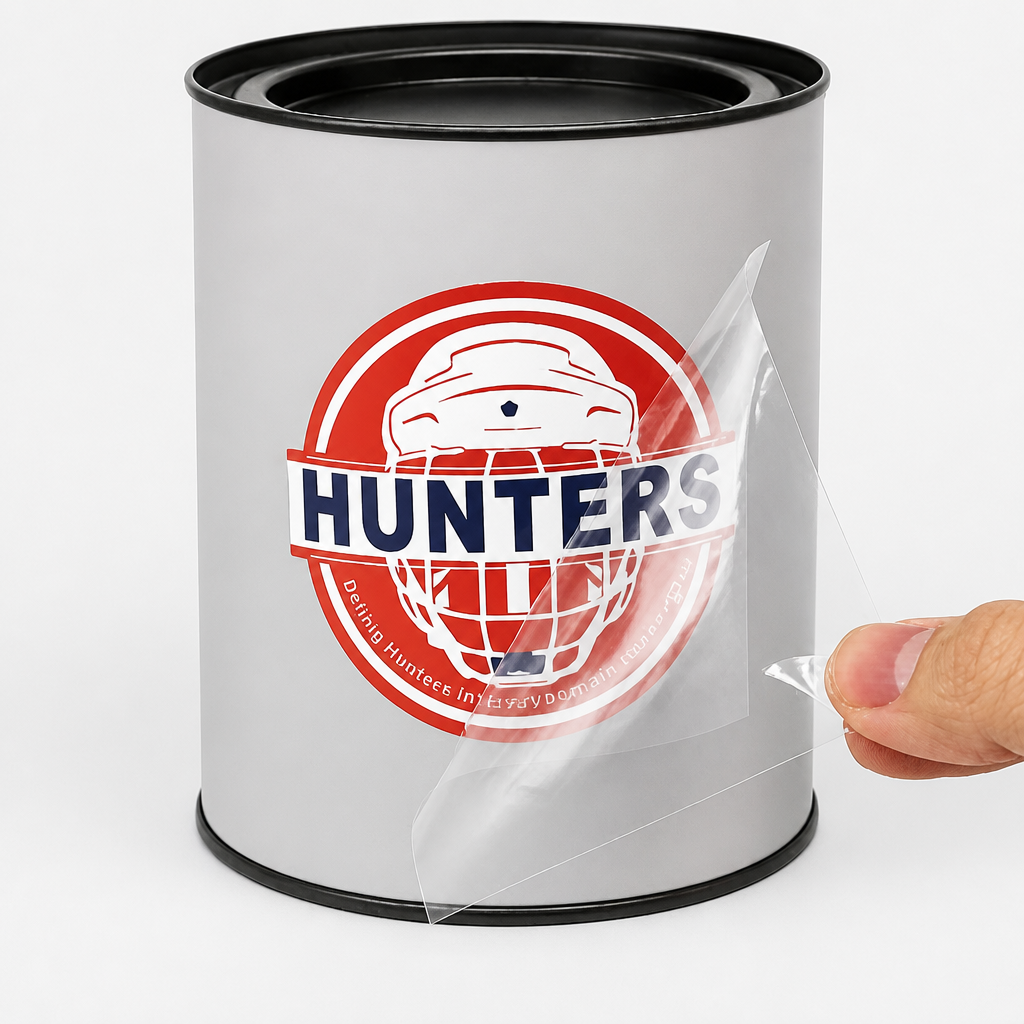

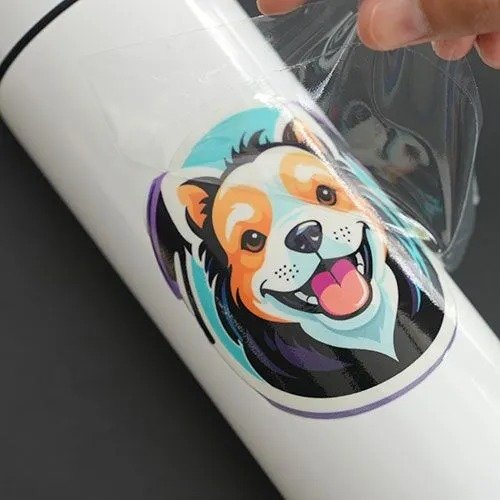

Thermos Cup

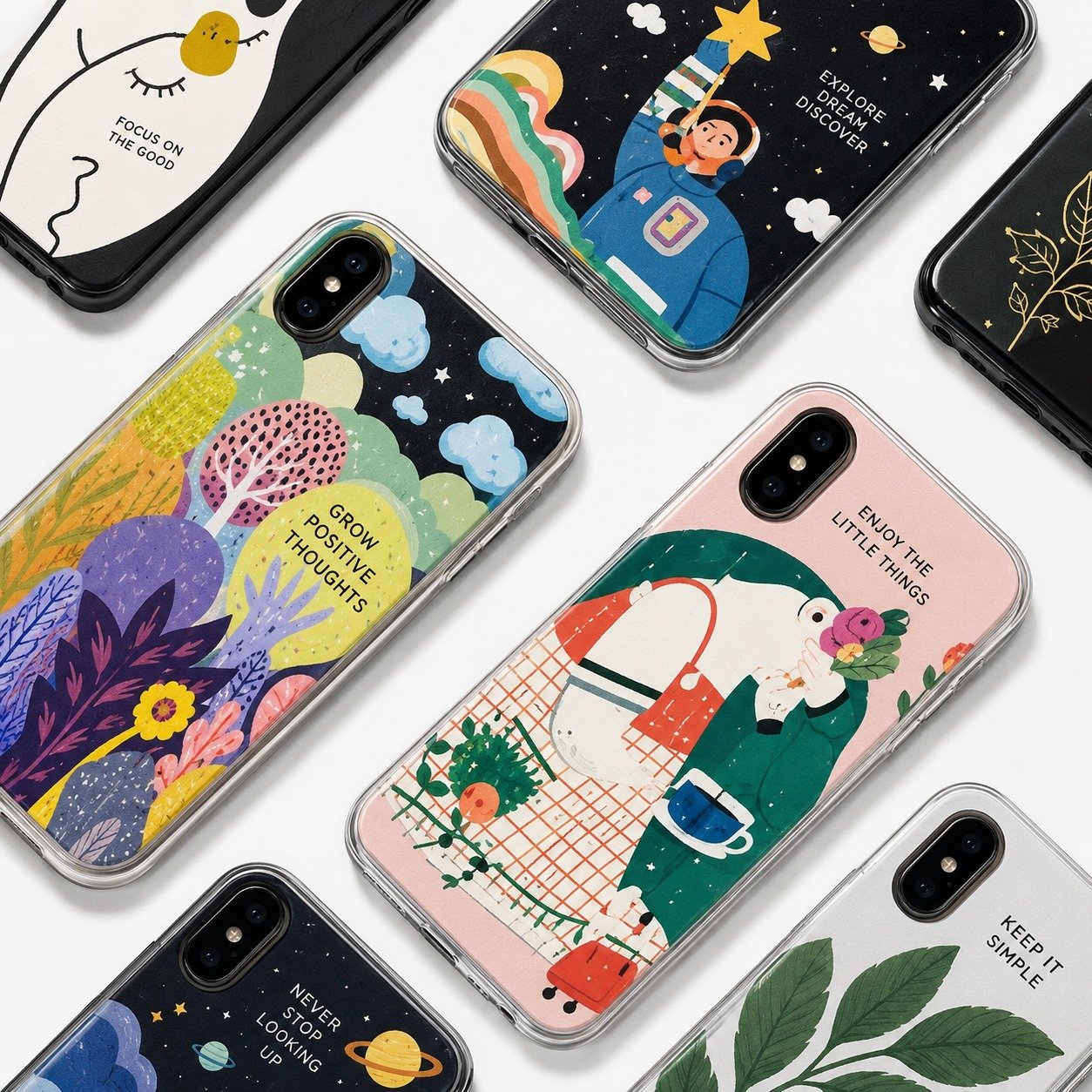

Mobile Phone Case

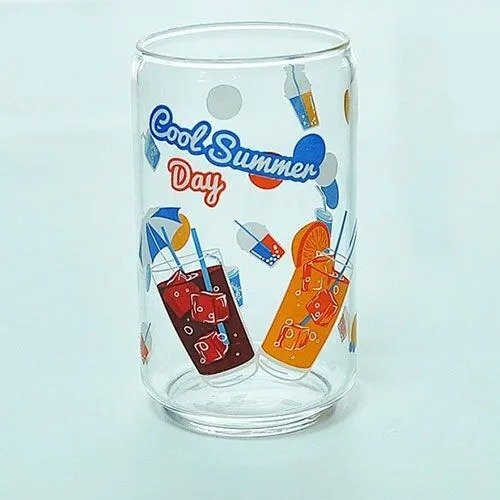

Glass

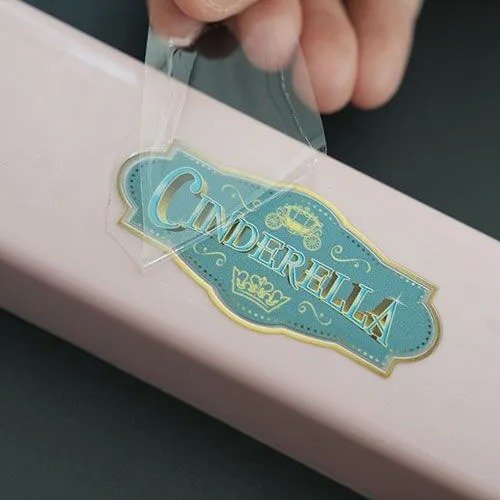

Plastic Box

FAQ

The UV DTF market is growing rapidly due to increasing demand for high-quality, durable, and customized printing across multiple industries.

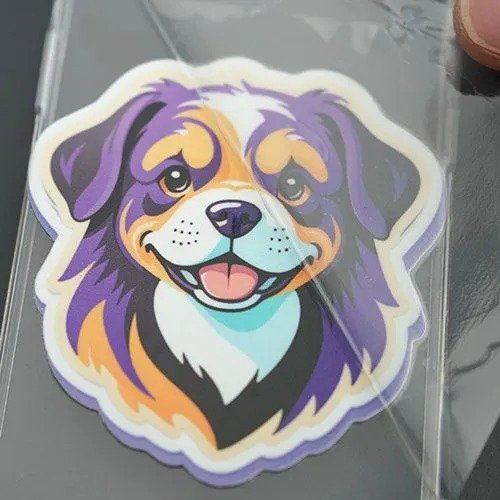

DTF is mainly for fabric printing, while UV DTF is designed for hard surfaces such as glass, acrylic, metal, plastic, wood, ceramic, and leather.

The printing cost depends on ink coverage, material, and design. Contact us for an accurate quotation based on your requirements.

UV DTF prints offer excellent durability with strong adhesion, making them resistant to water, scratches, fading, and daily wear.

You need a UV DTF printer, UV inks, A & B transfer films, RIP software, and your artwork file to start printing.

A UV Flatbed Printer prints directly onto the product, while a UV DTF Printer prints onto transfer film, which is then applied to the object's surface.

When applied correctly, UV DTF transfers are long-lasting, waterproof, scratch-resistant, and suitable for regular cleaning and daily use.

You can purchase original UV DTF films, inks, and consumables directly from PICTEL to ensure the best print quality and machine performance.
